Specification
|
REF |
Set consisting of |
Qty. |
|

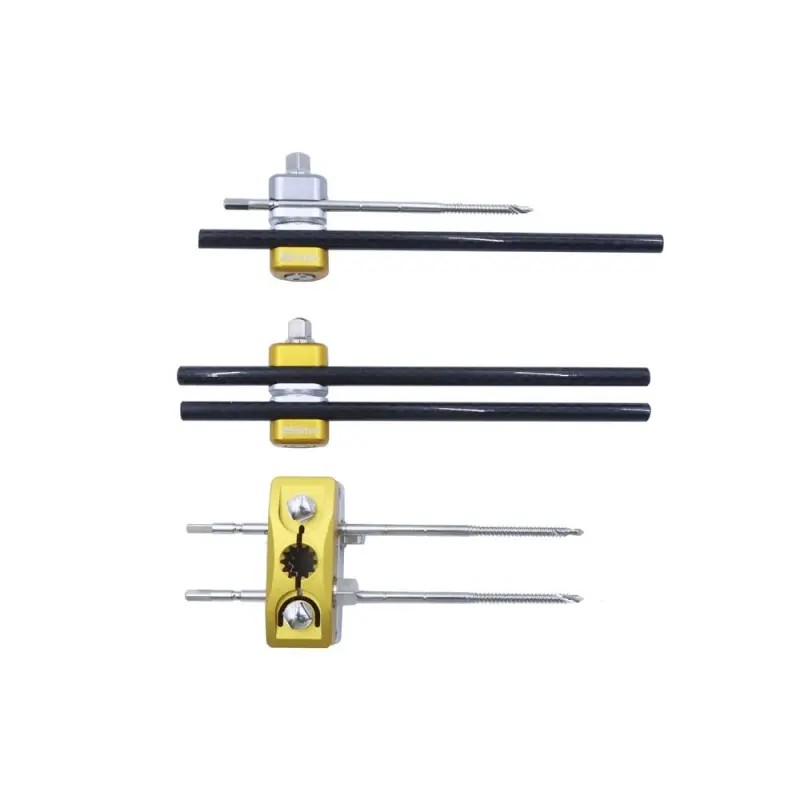

AY-SUL001 |
Rod to rod coupling |
12 |
|
AY-SUL002 |
Pin to rod coupling |
12 |
|

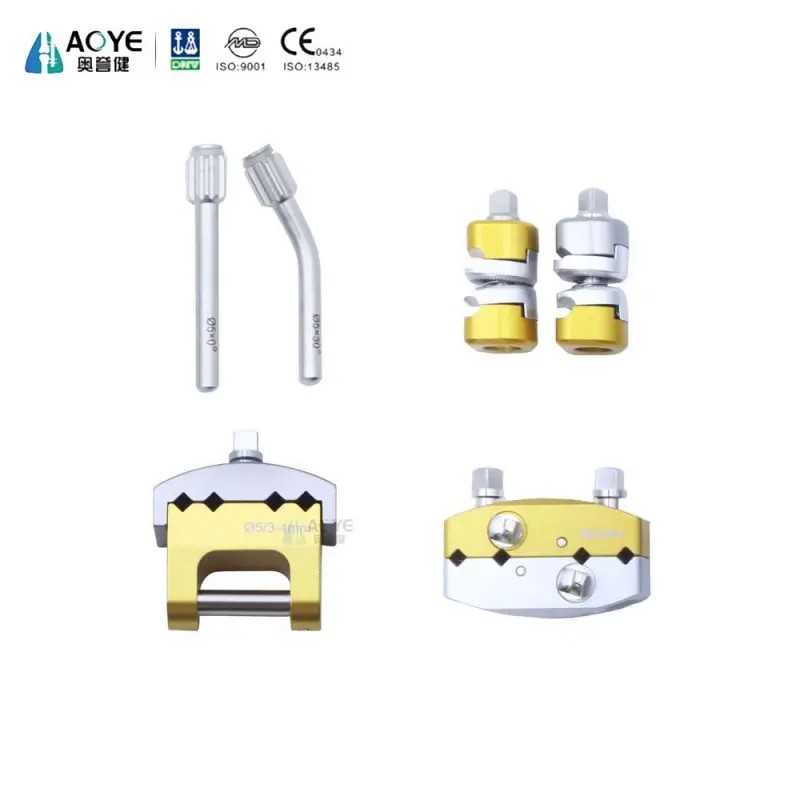

AY-SUL003 |
4 hole post clamp |
4 |
|
AY-SUL004 |
30° Pin |
3 |
|
AY-SUL005 |
0° Pin |
2 |
|
AY-SUL006 |
Peri-articular pin clamp |
1 |
|
AY-SUL007 |
Schanz screw Ø38025mm |
4 |
|

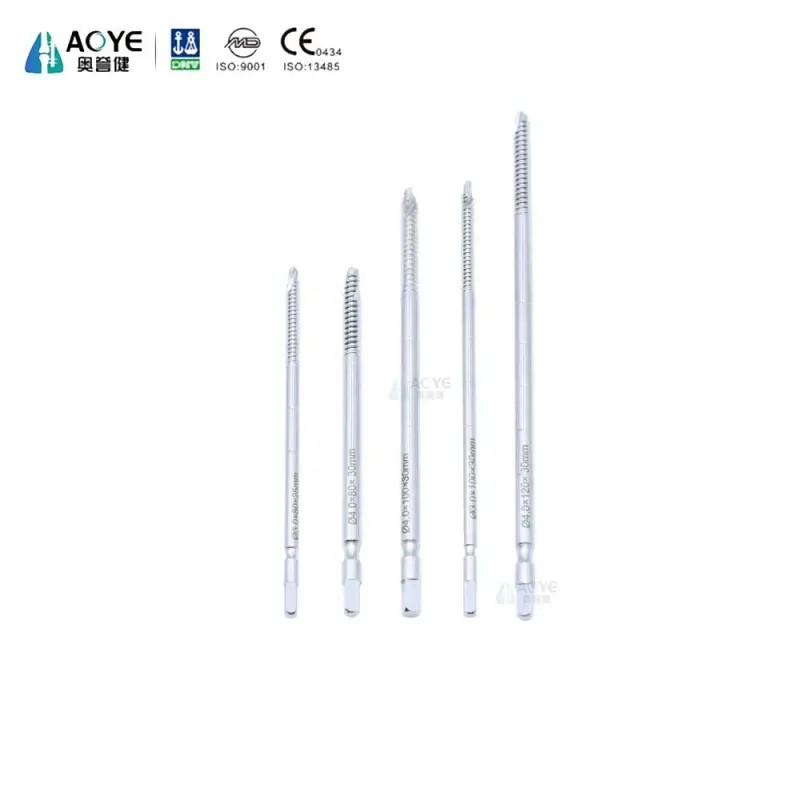

AY-SUL008 |
Schanz screw Ø310030mm |
4 |
|
AY-SUL009 |
Schanz screw Ø48030mm |
4 |
|
AY-SUL010 |
Schanz screw Ø410030mm |
4 |
|
AY-SUL011 |
Schanz screw Ø412030mm |
4 |
|
AY-SUL012 |
Guides Ø3 |
1 |
|
AY-SUL013 |
Guides Ø4 |
1 |
|
AY-SUL014 |
Carbon connecting rod Ø5*130 |
4 |
|
AY-SUL015 |
Carbon connecting rod Ø5*150 |
4 |
|
AY-SUL016 |
Carbon connecting rod Ø5*180 |
4 |
|
AY-SUL017 |
Carbon connecting rod Ø5*200 |
4 |
|
AY-SUL018 |
Screw driver Ø3 |
1 |
|
AY-SUL019 |
Screw driver Ø4 |
1 |
|
AY-SUL020 |
Hand drill |
1 |
|
AY-SUL021 |
T wrench |
1 |
|
AY-SUL022 |
Ibw jointy movement device |
1 |
|
AY-SUL023 |
Adaptor Ø3 |
1 |
|
AY-SUL024 |
AdaptorØ4 |
1 |
|
AY-SUL025 |
Thumb wheel |
1 |
|
AY-SUL026 |
Stabilization wrench |
1 |
|
AY-SUL027 |
Instrument set |
1 |
|
|
|
82 |
Product overview

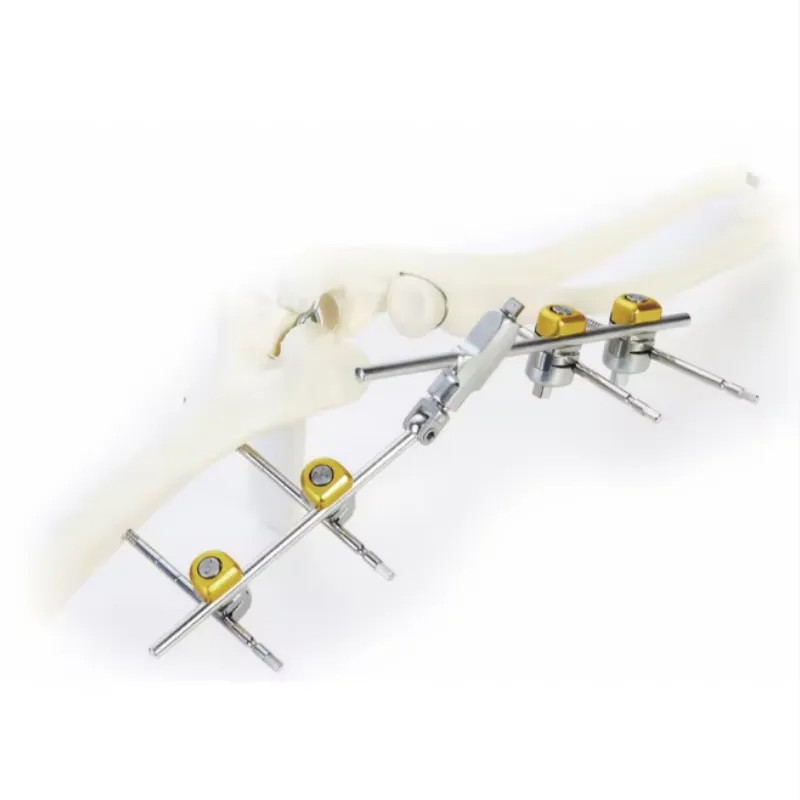

The Hoffman Upper Limb Combination External Fixator is a versatile and reliable fixation system designed for the stabilization of fractures in the upper extremities, including the humerus, radius, and ulna. It provides rigid fixation while allowing postoperative adjustments and early functional rehabilitation.
Manufactured from high-quality surgical-grade stainless steel and lightweight anodized aluminum alloy, this system ensures exceptional strength, biocompatibility, and corrosion resistance. Its modular design allows surgeons to customize the construct according to various fracture patterns and patient-specific requirements.
The fixator is compatible with a wide range of Schanz pins and connecting rods, enabling flexible configurations for both simple and complex fractures. Precision-engineered components facilitate easy assembly and secure fixation, reducing intraoperative time and improving clinical outcomes.
Advantages
Versatile Configuration: Modular design allows assembly in multiple configurations to manage both simple and complex upper limb fractures
High Mechanical Stability: Provides rigid fixation and maintains accurate alignment throughout the healing process.
Ease of Use: Lightweight components and intuitive assembly minimize intraoperative time and enhance surgical efficiency.
Durable Materials: Made of surgical-grade stainless steel and anodized aluminum for superior strength, corrosion resistance, and biocompatibility.
Postoperative Flexibility: Allows controlled postoperative adjustments to promote bone healing and early mobilization.
Applications
Fractures of the humerus, radius, and ulna
Comminuted and open fractures requiring external stabilization
Temporary fixation before definitive internal fixation
Corrective osteotomy and limb reconstruction procedures
Post-traumatic deformity correction and limb lengthening
FAQ
Q1: What materials are used in this external fixator?
A: The system is made from surgical-grade stainless steel and anodized aluminum alloy, ensuring durability, corrosion resistance, and excellent biocompatibility.
Q2: Is the fixator compatible with other external fixation components?
A: Yes. It is compatible with most standard Schanz pins, rods, and clamps commonly used in orthopedic surgery.
Q3: Can the fixator be adjusted after surgery?
A: Yes. The modular design allows postoperative alignment adjustments to support proper bone healing and patient comfort.
Q4: What types of fractures are best treated with this system?
A: It is ideal for fractures of the upper limb—including the humerus, radius, and ulna—especially in cases of comminuted, open, or complex fractures requiring external stabilization.
Q5: Does the system support early rehabilitation?
A: Absolutely. The stable fixation enables early functional exercises, promoting faster recovery and better outcomes.
